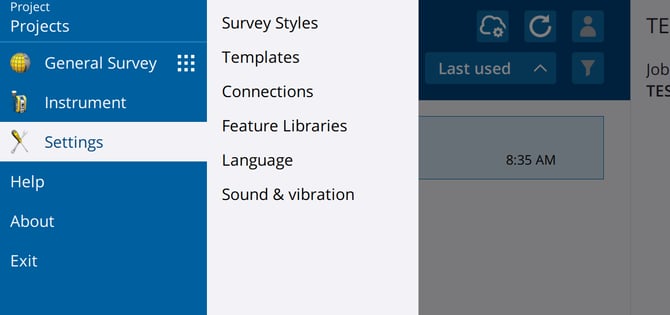

• Select Settings then Survey styles and at the bottom select NEW.

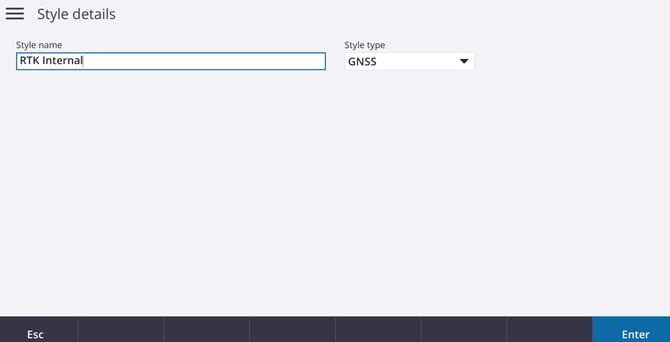

• Name the Survey Style and select GNSS for Style Type and accept at the bottom.
• Select Edit on Rover Options - Select RTK for Survey type and CMRx for Broadcast format - Select Accept when complete.
• Make sure to match Antenna type and select the satellites desired.

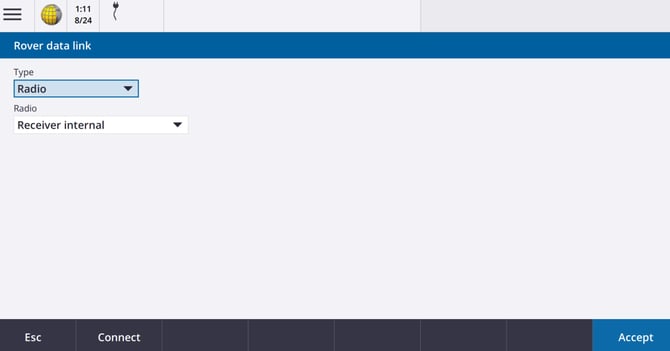

• Select Edit on Rover Data Link – Select Radio for Type and Receiver Internal for Radio. Select connect when complete.
• Make sure the Receiver is turned on when trying to connect.

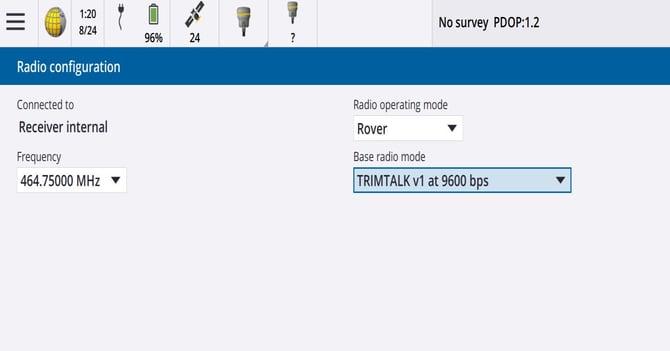

• Select the desired Frequency. For this example, I am selecting 464.75000MHz and TRIMTALK v1 9600bps. Select Accept twice.

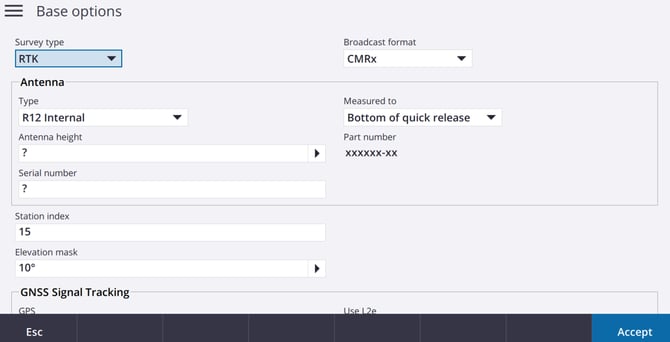

• Select Edit on Base Options - Select RTK for Survey type and CMRx for Broadcast format - Select Accept when complete.
• Make sure to match Antenna type and select the satellites desired.

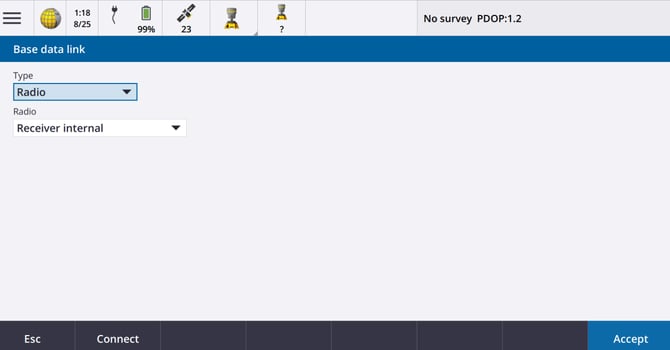

• Select Edit on Base Data Link – Select Radio for Type and Receiver Internal for Radio. Select >Base or Connect when complete.

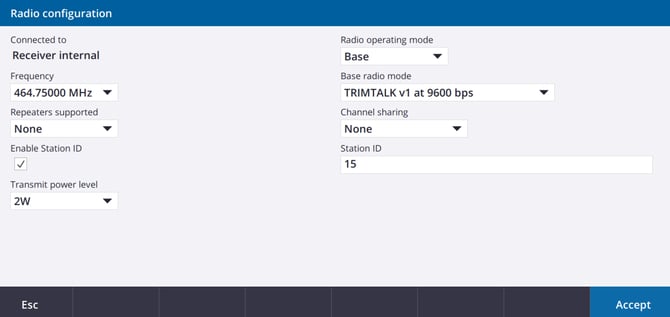

• Select Base for your Radio operating mode and match your Frequency and Base radio mode to your Rover settings. (464.75000 & TRIMTALK v1 9600bps)
• Select Accept when complete.
• Make sure to Store your settings. The RTK Internal survey style is complete!

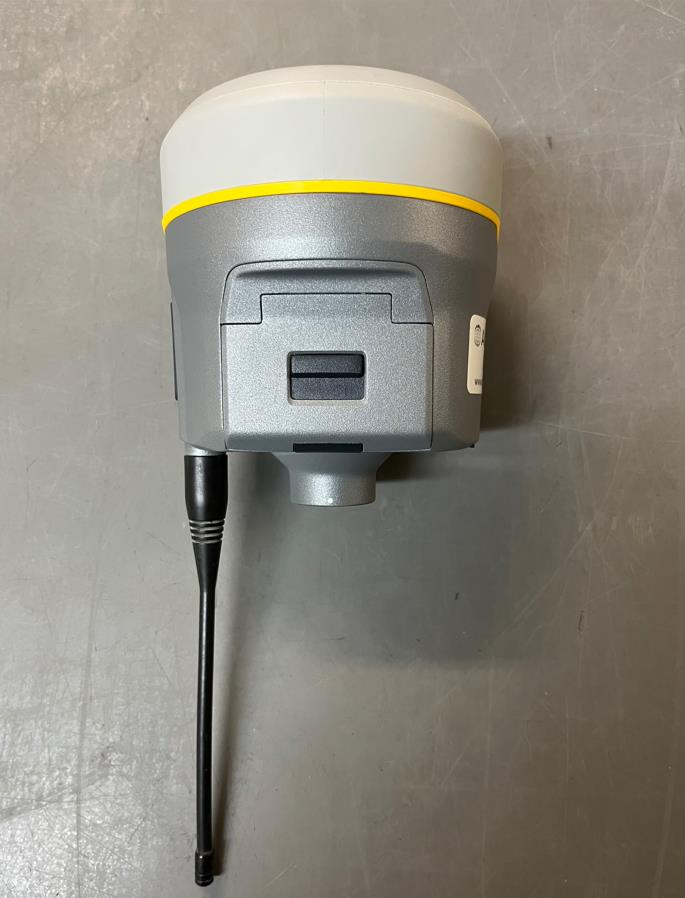

• Make sure BOTH your base and rover have the Antennas inserted.
• Make sure the receiver antennas don’t touch your tripod/fixed height.
