Did you Know?

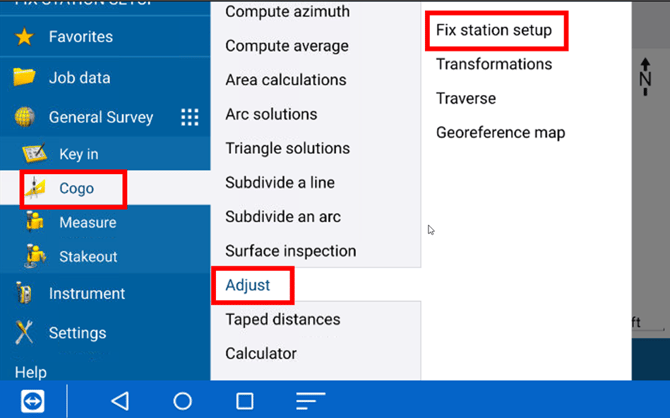

It is possible to fix a total station setup within Trimble Access by changing the location and/or orientation of the station setup. To perform this function, select the hamburger at the top left and select Cogo, Adjust, then Fix station setup.

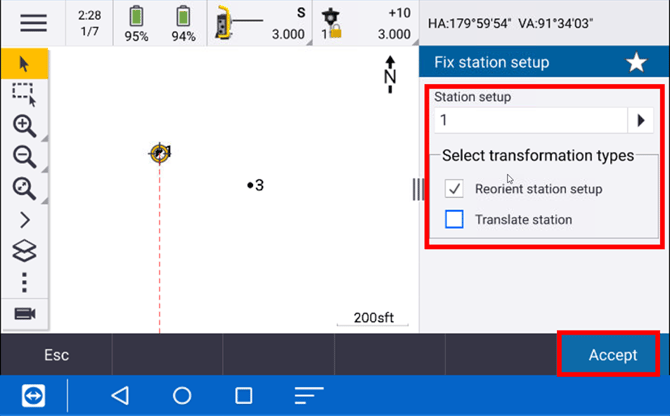

In the Fix station setup window enter the station setup to be adjusted. Then select Reorient station setup (rotation), Translate station (move location), or both. Select Accept.

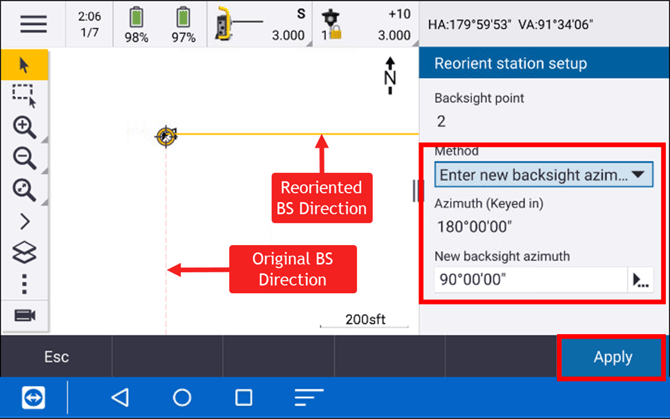

If Reorient station setup is chosen, select either the Enter new backsight azimuth or the Enter new backsight bearing option under Method. The original backsight azimuth/bearing is displayed, enter the New backsight azimuth/bearing to rotate the orientation of the setup. Note: Trimble Access will show a preview of the new orientation before being stored. Select Apply.

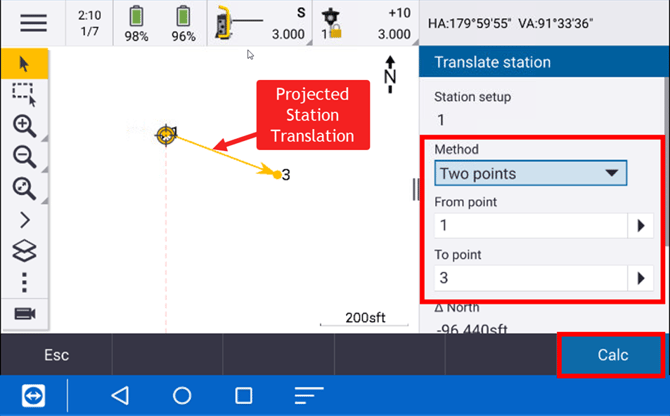

If Translate station setup is chosen, select the Method desired to move the setup. Note: Trimble Access will show a preview of the new setup translation before being stored. Select Apply.
For more information about Fix station setup in Trimble Access click the link Trimble Access Fix station setup
