Survey Style
To get to the Survey Styles:
• Click on
• Click Settings, then Survey Styles
• Choose the “RTK” Survey style

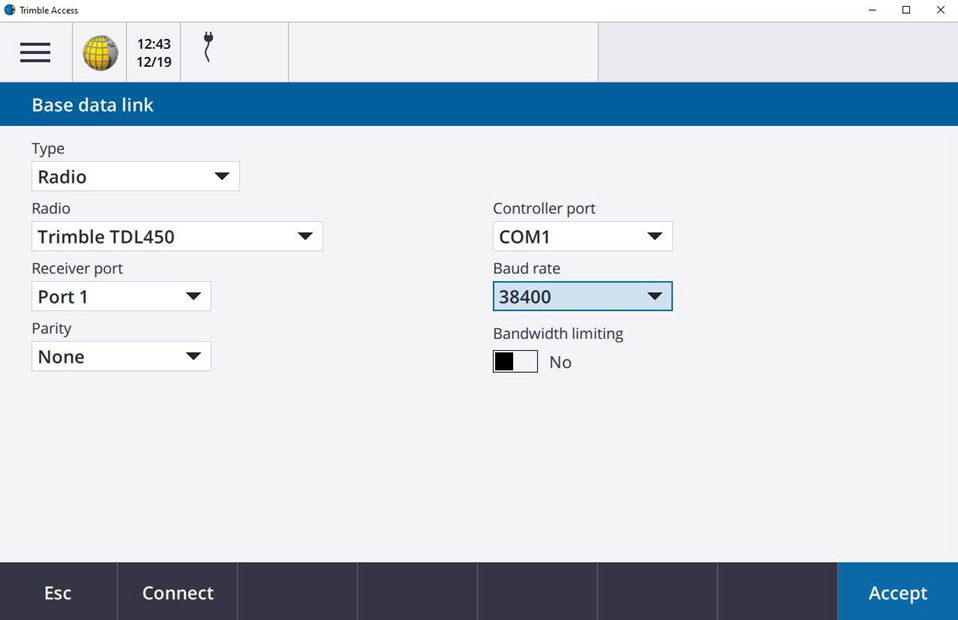

The main thing in the survey style you will have to make sure of is that the radio is set correctly. Once you have the RTK survey style chosen, click on “Base data link” and ensure your settings match what is shown below.
Base
If you are setting up on a known point, make sure you have either imported or keyed it in.
To start the base:
• Click on
• Click Measure then RTK
• Click on Start base receiver

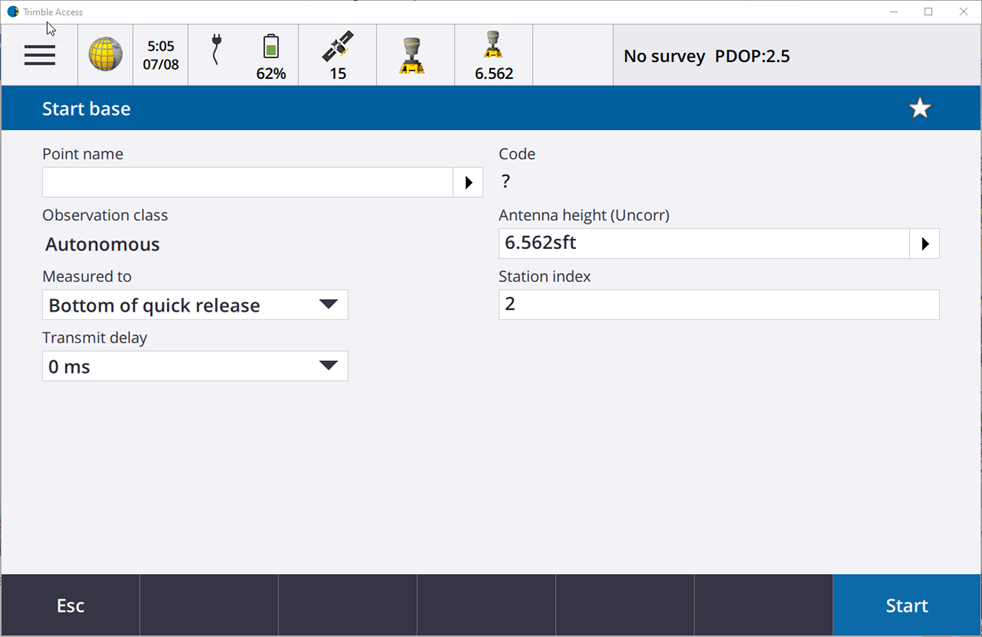

• You should see a page like the one below
• Put the point number in the Point name field

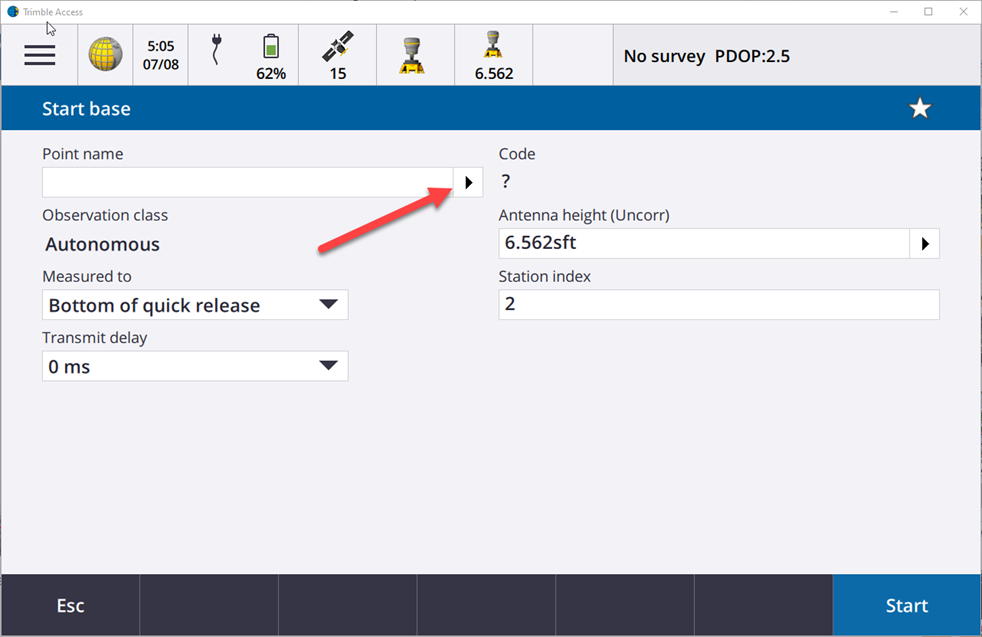

• If you do not have a point number, click on the arrow next
to the Point name field

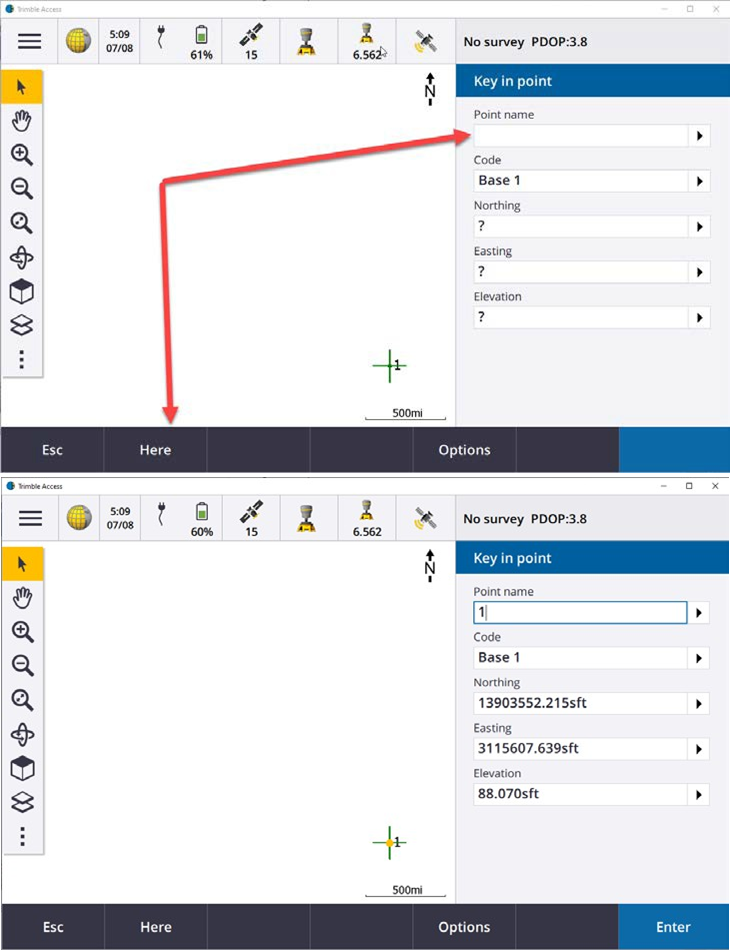

• Click “Key in”
• Enter a point number and click here at the bottom of the
screen. This will give you an uncorrected, autonomous
point at your base
